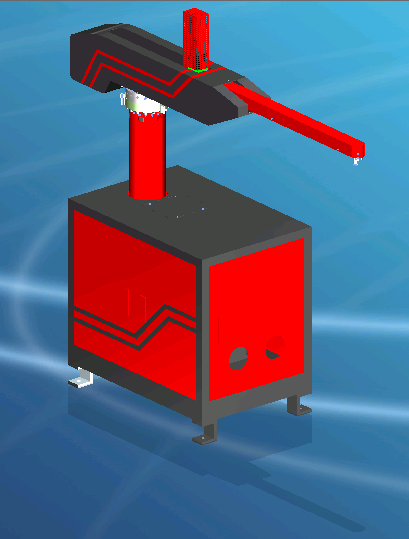

Extremely cost-effective stamping manipulator

Stamping manipulator is based on the automation equipment, according to the characteristics of stamping production, specifically for the realization of stamping automation unmanned production and research and development of equipment. Can replace the artificial stamping station in the material into the stamping, handling, loading and unloading work. Robot for the stamping and other repetitive, dangerous, high-processing industry, in saving labor costs, improve labor and equipment safety, product quality, quality, process stability and other aspects of modern industrialization "pioneering and innovative" important spirit reflect.

Application description:

Stand-alone manipulator for the stamping industry in more than one punch line production to achieve stamping parts for precision transfer, continuous automation of the R & D and production of automatic feeding, transfer equipment. The use of high-performance, Delta servo motor drive, with precision transmission mechanism and with a vacuum chuck, electromagnet or pneumatic jaws and other diversified reclaiming way to provide customers with 24H all-day operation, stable and reliable equipment, in order to achieve shortening Production rhythm, improve the efficiency of the purpose of improving customers in the industry with a strong technical support and competitive advantage.

Function parameter:

 Drive mechanism

(Travel 2500 mm or less) using imported timing belt to move to seal the bearing group guide; left and right travel (travel more than 2500 mm) using imported gear timing belt with precision bevel rail and guide wheel group guide;

The lifting mechanism uses a servo motor plus a reducer to drive the cam and guide it with a double support cylinder.

Highly efficient AC servo system

Forward selection of high-performance motion control system and built-in brake AC servo motor, in order to achieve high-performance operation requirements, and in the expected power failure or overload occurs, the timely stop of sports machinery, access to high security environment.

control

The drive values are preset to the controller, and their operating procedures and modes, workpiece error monitoring, etc. are stored in the PLC. The system has a mistaken feed, lack of material inspection, and can be in the abnormal state occurs when the screen display;

Scalability

Equipment can be used with NC feeder, double stack, single stacking rack, multi-axis tapping machine, flip machine with connection to use, to achieve full automation operation.
