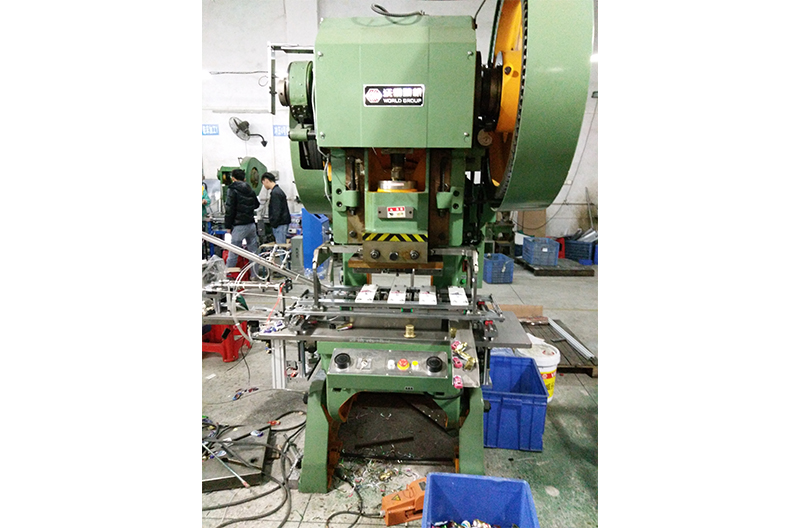

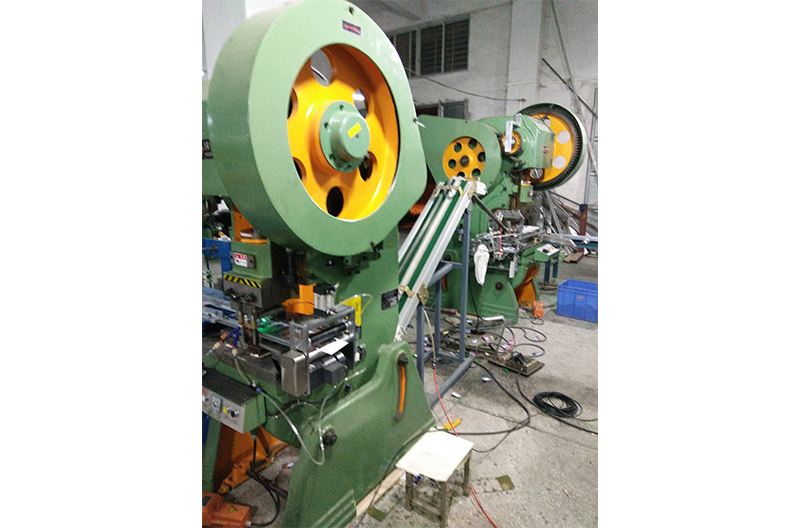

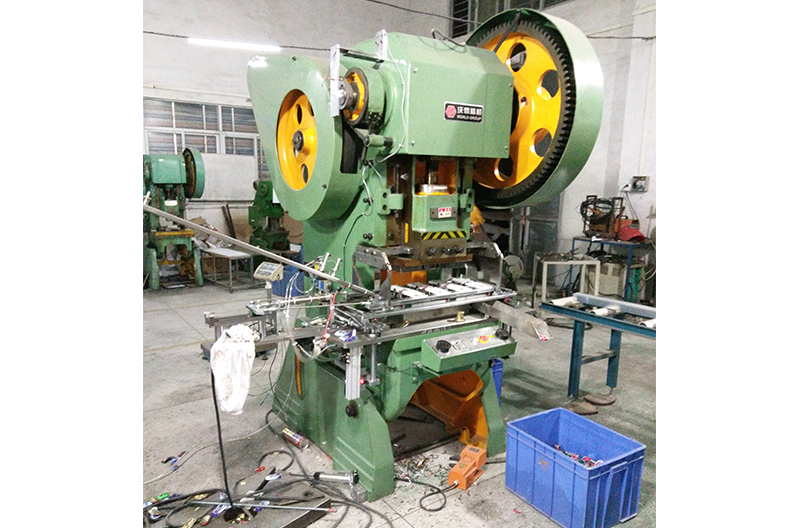

Introduction to equipment:
1, suitable for the production of two cans.
2, according to customer needs to develop the number of stations, up to six stations can be synchronized stamping to reduce labor costs and achieve high efficiency operations.
3, the use of imported electrical control system and Mitsubishi Mitsubishi servo motor.
As shown in Figure 4, the touch screen for the Chinese interface, easy to operate, easy to debug, by the servo motor to do push material drive device, feeding precision.
5, the device is equipped with photoelectric sensor protection device and alarm system, found that the fault will be self-shutdown alarm and display the fault location on the touch screen.
As shown in Figure 6, the equipment is equipped with an automatic lubrication system to ensure long operation of the equipment.
7, in accordance with the principle of punch press, to improve the punching force of the device.
8, in accordance with the principle of high-speed punch point friction to improve the durability of the upper and lower punch and stability.
9, the upper and lower punch were designed three die hole, according to the product structure, select single stamping or double die stamping.
Application areas:
Automatic canning production line for the tin packaging industry: food, medicine, stationery, packets and so on.
Technical Parameters:
Device name | Canning machine |
model | YL-ZG0114 |
power | 6KW |
Voltage | 380V/50Hz |
Pressure | 0.4-0.7MPA |
Feeding accuracy | 0.1MM |
Equipment single-mode production capacity / equipment dual-mode production capacity | 20-50PCS/MIN / 40-100PCS/MIN |
Unit total weight | 800kg |
Dimensions (L × W × H) | 4030X680X1800mm |
