Wire bending machine

Your current location: Home >> Product >> Wire bending machine

Wire bending machine

  • category:Wire bending machine

  • The number of clicks:
  • Release date:2017/07/07
  • MORE
  • Message
Details

Introduction to equipment:

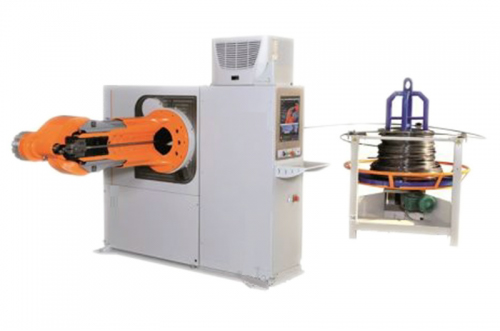

As shown in Figure 1, this device subverts the traditional bending method, full CNC bending, any angle can be parameterized to achieve universal wire bending machine.


2, the equipment for the fully automated equipment, artificial only need to put the wire into the material, replace the corresponding wire size of the module can be.


3, the replacement of products, the artificial need to set the bending angle and related parameters on the screen, do not need any professional programming staff.


As shown in Figure 4, the control system automatically developed, mechanical action by the software design, computer testing, to ensure that each action is reasonable without conflict. Equipment control interface for the whole touch of human-machine interface, according to the interface prompt operation, simple and clear, novice can also be skilled operation, equipment with automatic counting, automatic alarm function, easy to calculate the output and troubleshooting.




Application areas:


CNC wire bending machine molding machine for: automotive industry, furniture industry, iron industry, kitchenware industry, and so on.




Technical Parameters:


product name

CNC wire bending machine molding machine

model

YL-WJ170122

Wire diameter range

2.0-8.0MM

Line length

40M/MIN

Nose rotation angle

360°

Send line accuracy

±0.05MM

Bending accuracy

±0.03°

Bending speed

0.4 seconds / time

Voltage

380V/50Hz

Pressure

0.4-0.7MPA

Equipment characteristics

Custom function can be customized

Unit total weight

2600kg

Area (length × width × height)

6000×2000×1800



          Bending machine

Bending machine

Bending machine

Bending machine

Bending machine

Bending machine

Bending machine
