Introduction to equipment:

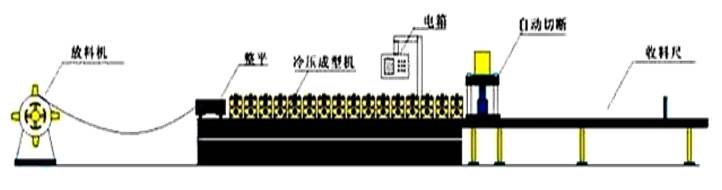

As shown in Figure 1, the equipment for the automatic production unit, the production process: raw materials uncoiler → servo press → roll molding machine → automatic cut off → computer controller → hydraulic system composed of automatic production, computer control automatically cut off Simple and easy to operate, low maintenance costs of processing equipment.
2, the device is through the order of the multi-pass forming roll, the coil, strip or wire and other metal plate with continuous bending to produce a specific section of the plastic molding process of the machine.
3, the equipment for the custom model, all parameters are for reference only. Different products, parameters are also different.
Application areas:
Rolling machine for the cold molding of various industries: shelf molding, electrical installation rails, high-speed road fence, color steel tile, stadium seat installation beam, door frame molding, and so on!
Technical Parameters:

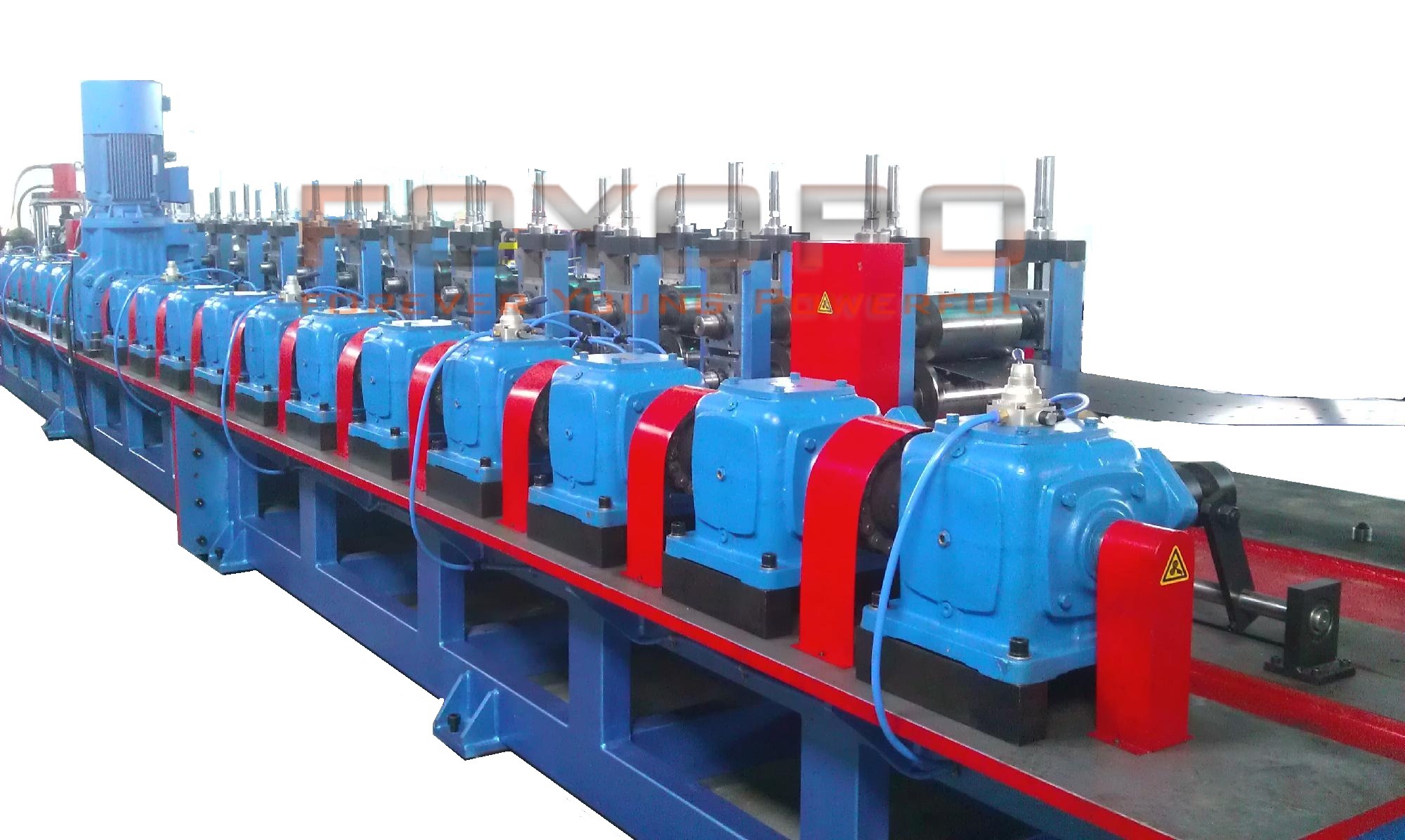

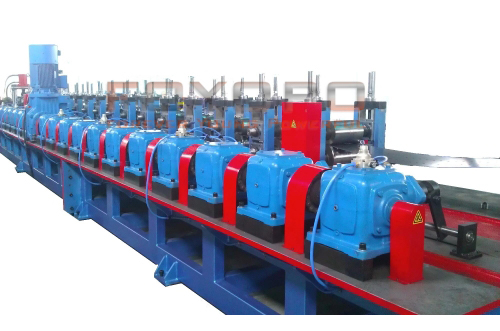

Device name | Seat steel beam roll forming machine |
model | YL-GY1703 |
Applicable steel strip thickness / wire diameter | 0.3—6.0mm ≥Ø1.5MM |
Applicable steel strip maximum width | 400mm |
Roll weight | ≤ 4000kg |
Unit Theory Operating Speed | 11m/min |
main motor power | 11kw |
Hydraulic motor power | 5.5kw |
Applicable power supply | 380v/50Hz |
Unit total weight | 5300kg |
Dimensions (L × W × H) | 14000×2100×1260mm |
